MITM 3-0090 pump replacement parts & breakdown

Mi-T-M 3-0090 Pump PDF

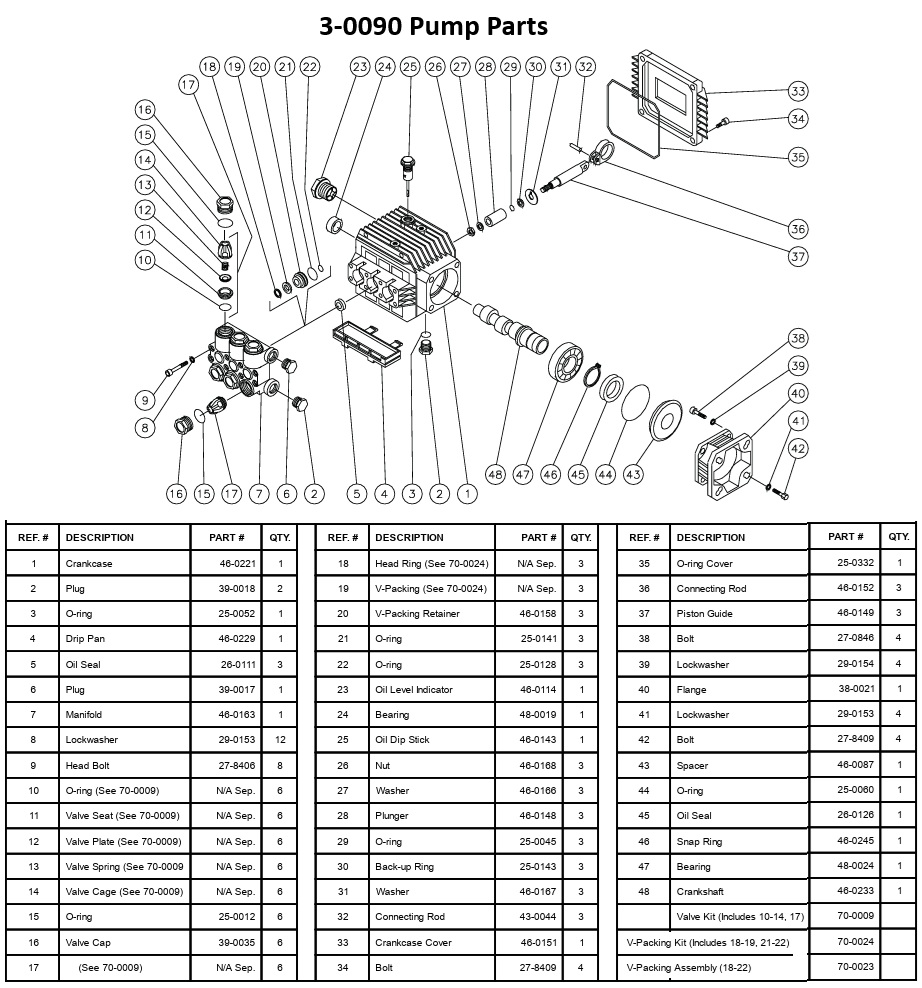

3-0090 Pump Parts

PUMP GAS 3-0090,

UNLOADER W/INJECTOR 8-0494

Pump Oil AW-4085-0016

KIT - VALVE [Mi-T-M], 70-0009

KIT - PACKING ASSEMBLY 70-0223

KIT - UNLOADER 70-0224

PLUG/HEX 39-0018

O-RING 9/16 X 3/4 25-0052

OIL SEAL 26-0111

PLUG/HEX 39-0017

MANIFOLD - PUMP - BRASS 46-0163

Lockwasher 29-0153

O-RING, 25-0012

VALVE PLUG 39-0035

O-RING 25.12 X 1.78MM 25-0141

O-RING 15.08 X 2.62MM 25-0128

INDICATOR - OIL LEVEL, 46-0114

BEARING NEEDLE 48-0019

DIPSTICK 46-0143

WASHER - COPPER GASKET 46-0166

PLUNGER 46-0148

O-RING 7/32 X 11/32 25-0045

RING ANTI-EXTRUSION 25-0143

WASHER - SLINGER COPPER 46-0167

PIN CONNECTING ROD 43-0044

Gasket 046-0151

O-RING 88.57 X 2.62MM 25-0332

CONNECTING ROD 46-0152

PISTON GUIDE 46-0149

Lockwasher 29-0154

38-0021, FLANGE GASOLINE [Mi-T-M]

Lockwasher 29-0153

SPACER - BEARING 46-0087

25-0126, O-RING 3.69 X 1.78MM [Mi-T-M]

BEARING - BALL 48-0024
