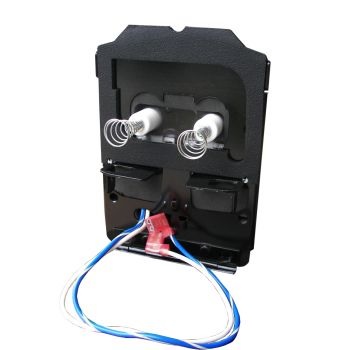

Beckett 5199701U Electronic Igniter 240V 60Hz With A Baseplate for AF, AFG, NX, and CF375

Specifications
Input Voltage: 168-264 VAC, 50/60 Hz
Output Voltage: 19 kV peak
Output Current: 25 mA RMS
Input Current: 0.3A
Secondary Floating Ground
Ambient Operating Temperature: -40 to +150° F
Storage Temperature: -40 to +150° F
Moisture: 5 to 95% Relative Humidity, Condensing

Application Information
This igniter is designed for use with 240 VAC.
It is rated for continuous duty and can be used with intermittent, or interrupted ignition primary controls.
The Beckett oil igniter is designed to mount in the same manner as standard ignition transformers and igniters.
This igniter can be adapted to multiple base plates to accommodate Beckett residential and commercial burners. It will also fit on many other vendors’ transformer base plates.

CAUTION! Do not use this igniter beyond its design specifications. Improper operation and igniter failure may result.
