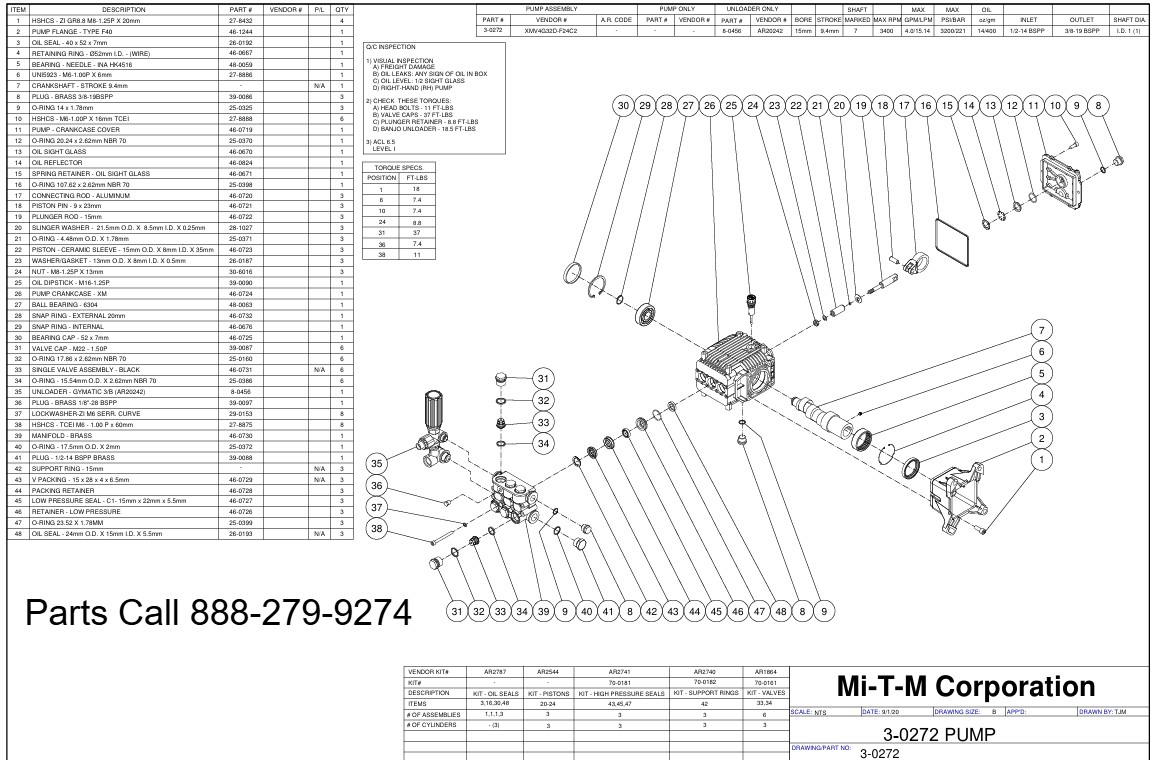

MITM 3-0272 Pump Rebuild Kits & Parts

Mi-T-M 3-0272 Pump Parts

PUMP DIRECT DRIVE GASOLINE 3-0272PUMP DIRECT DRIVE GASOLINE 3-0272
 UNLOADER 8-0456UNLOADER 8-0456
 AR pump oil, AR64516AR pump oil, AR64516
 ZINC GR8.8 - 27-8432ZINC GR8.8 - 27-8432
SUPPORT RING 15MM 70-0182SUPPORT RING 15MM 70-0182
 Water Seal KIT 70-0181Water Seal KIT 70-0181
 KIT - VALVE 70-0161KIT - VALVE 70-0161
 PACKING RETAINER 46-0728PACKING RETAINER 46-0728
RETAINER-LOW PRESSURE 46-0726RETAINER-LOW PRESSURE 46-0726
 SEAL - OIL 26-0193SEAL - OIL 26-0193
 SEAL - OIL 26-0192SEAL - OIL 26-0192
 RETAINING RING 46-0667RETAINING RING 46-0667
FLANGE, F40 46-1244FLANGE, F40 46-1244
 BEARING NEEDLE 48-0059BEARING NEEDLE 48-0059
 Set Screw 27-8886Set Screw 27-8886
 O-RING 25-0325O-RING 25-0325
Screw 27-8888Screw 27-8888
 COVER CRANKCASE 46-0719COVER CRANKCASE 46-0719
 O-RING 25-0370O-RING 25-0370
 OIL SIGHT GLASS 46-0670OIL SIGHT GLASS 46-0670
REFLECTOR - OIL 46-0824REFLECTOR - OIL 46-0824
 RETAINER-OIL SIGHT GLASS 46-0671RETAINER-OIL SIGHT GLASS 46-0671
 O-RING 25-0398O-RING 25-0398
 CONNECTING ROD-ALUMINUM 46-0720CONNECTING ROD-ALUMINUM 46-0720
PISTON PIN 46-0721PISTON PIN 46-0721
 PLUNGER ROD 46-0722PLUNGER ROD 46-0722
 Slinger Washer 28-1027Slinger Washer 28-1027
 O-RING 25-0371O-RING 25-0371
PISTON - CERAMIC 46-0723PISTON - CERAMIC 46-0723
 WASHER/GASKET 26-0187,WASHER/GASKET 26-0187,
 Nut 30-6016Nut 30-6016
 OIL DIPSTICK 39-0090OIL DIPSTICK 39-0090
CRANKCASE 46-0724CRANKCASE 46-0724
 BEARING - BALL 48-0063BEARING - BALL 48-0063
 RETAINER 46-0732RETAINER 46-0732
 RETAINING RING 46-0676RETAINING RING 46-0676
BEARING CAP 46-0725BEARING CAP 46-0725
 VALVE CAP 39-0087VALVE CAP 39-0087
 O-RING 25-0160O-RING 25-0160
 46-0731, PUMP-VALVE SINGLE-SEE 70-0161 [Mi-T-M]46-0731, PUMP-VALVE SINGLE-SEE 70-0161 [Mi-T-M]
O-RING 25-0386O-RING 25-0386
 PLUG - BRASS 39-0097PLUG - BRASS 39-0097
 Lockwasher 29-0153Lockwasher 29-0153
 Screw 27-8875Screw 27-8875
MANIFOLD - BRASS 46-0730MANIFOLD - BRASS 46-0730
 O-RING 25-0372O-RING 25-0372
 PLUG - 1/2-14BSPP 39-0088PLUG - 1/2-14BSPP 39-0088
 46-0729, PUMP - V-PACKING [Mi-T-M]46-0729, PUMP - V-PACKING [Mi-T-M]
LOW PRESSURE SEAL 46-0727LOW PRESSURE SEAL 46-0727
