Mi-T-M, 3-0270 Pump Rebuild Kits & Parts

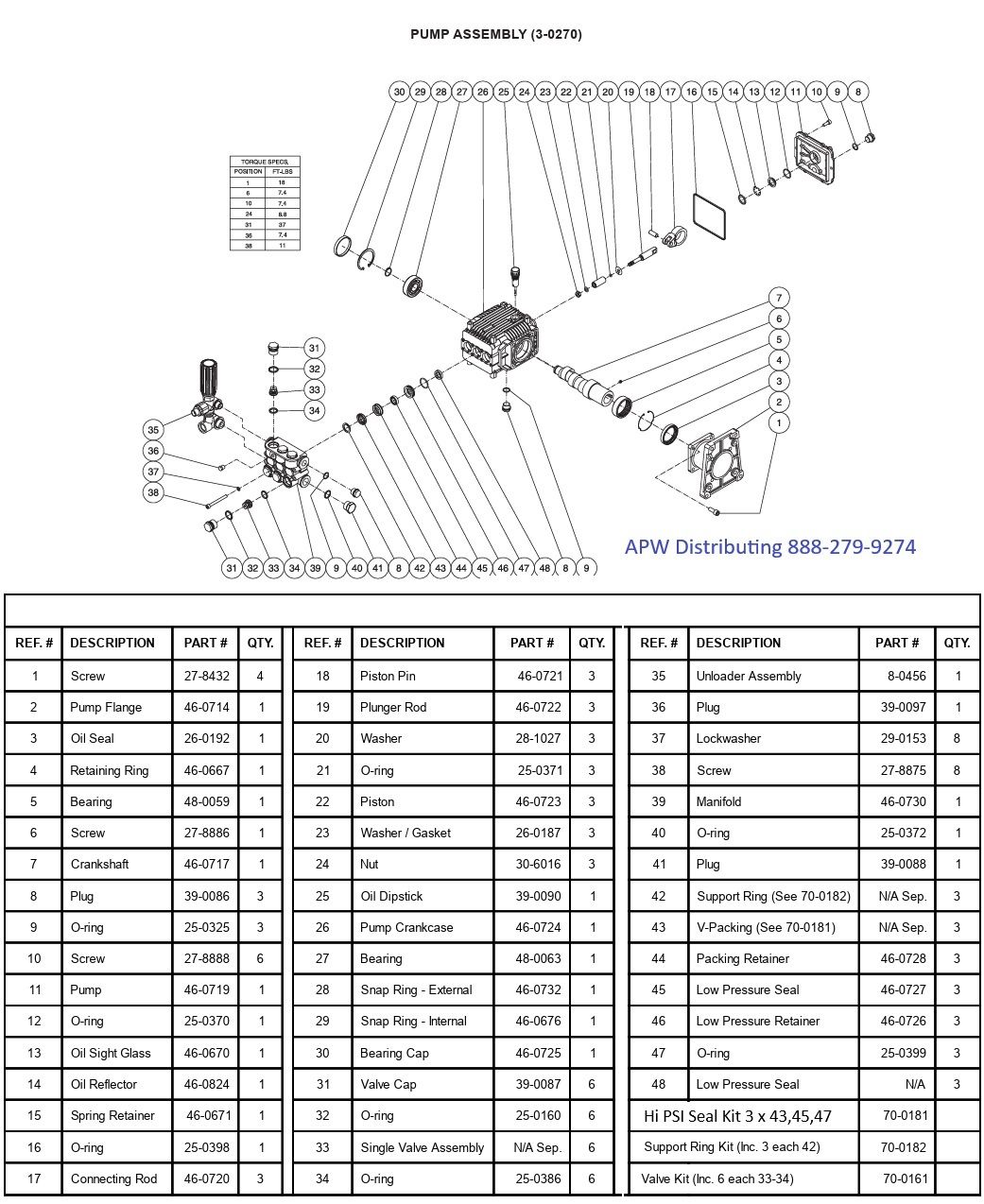

mitm 3-0270 pUMP BREAKDOWN

MITM 3-0270 Pump Parts

3-0270 pump3-0270 pump
 UNLOADER 8-0456UNLOADER 8-0456
 AR pump oil, AR64516AR pump oil, AR64516
 PUMP SAVER, 6151PUMP SAVER, 6151
Water Seal KIT 70-0181Water Seal KIT 70-0181
 SUPPORT RING 15MM 70-0182SUPPORT RING 15MM 70-0182
 KIT - VALVE 70-0161KIT - VALVE 70-0161
 ZINC GR8.8 - 27-8432ZINC GR8.8 - 27-8432
FLANGE FOR RKV PUMPS-TYPE F24 46-0714FLANGE FOR RKV PUMPS-TYPE F24 46-0714
 SEAL - OIL 26-0192SEAL - OIL 26-0192
 RETAINING RING 46-0667RETAINING RING 46-0667
 BEARING NEEDLE 48-0059BEARING NEEDLE 48-0059
Set Screw 27-8886Set Screw 27-8886
 46-0717, PUMP - CRANKSHAFT [Mi-T-M]46-0717, PUMP - CRANKSHAFT [Mi-T-M]
 O-RING 25-0325O-RING 25-0325
 Screw 27-8888Screw 27-8888
COVER CRANKCASE 46-0719COVER CRANKCASE 46-0719
 O-RING 25-0370O-RING 25-0370
 OIL SIGHT GLASS 46-0670OIL SIGHT GLASS 46-0670
 REFLECTOR - OIL 46-0824REFLECTOR - OIL 46-0824
SPRING RETAINER-OIL SIGHT GLASS 46-0671SPRING RETAINER-OIL SIGHT GLASS 46-0671
 REFLECTOR - OIL 46-0824REFLECTOR - OIL 46-0824
 SPRING RETAINER-OIL SIGHT GLASS 46-0671SPRING RETAINER-OIL SIGHT GLASS 46-0671
 O-RING 25-0398O-RING 25-0398
CONNECTING ROD-ALUMINUM 46-0720CONNECTING ROD-ALUMINUM 46-0720
 PISTON PIN 46-0721PISTON PIN 46-0721
 PLUNGER ROD 46-0722PLUNGER ROD 46-0722
 Slinger Washer 28-1027Slinger Washer 28-1027
Mi-T-M O-RING 25-0371Mi-T-M O-RING 25-0371
 RETAINER 46-0732RETAINER 46-0732
 RETAINING RING 46-0676RETAINING RING 46-0676
 BEARING CAP 46-0725BEARING CAP 46-0725
VALVE CAP 39-0087VALVE CAP 39-0087
 O-RING 25-0160O-RING 25-0160
 O-RING 25-0386O-RING 25-0386
 PLUG - BRASS 39-0097PLUG - BRASS 39-0097
Lockwasher 29-0153Lockwasher 29-0153
 Screw 27-8875Screw 27-8875
 MANIFOLD - BRASS 46-0730MANIFOLD - BRASS 46-0730
 O-RING 25-0372O-RING 25-0372
PLUG - 1/2-14BSPP 39-0088PLUG - 1/2-14BSPP 39-0088
 PACKING RETAINER 46-0728PACKING RETAINER 46-0728
 46-0727, PUMP - LOW PRESSURE SEAL [Mi-T-M]46-0727, PUMP - LOW PRESSURE SEAL [Mi-T-M]
 RETAINER-LOW PRESSURE 46-0726RETAINER-LOW PRESSURE 46-0726
