MITM 3-0230 Pump Rebuild Kits & Parts

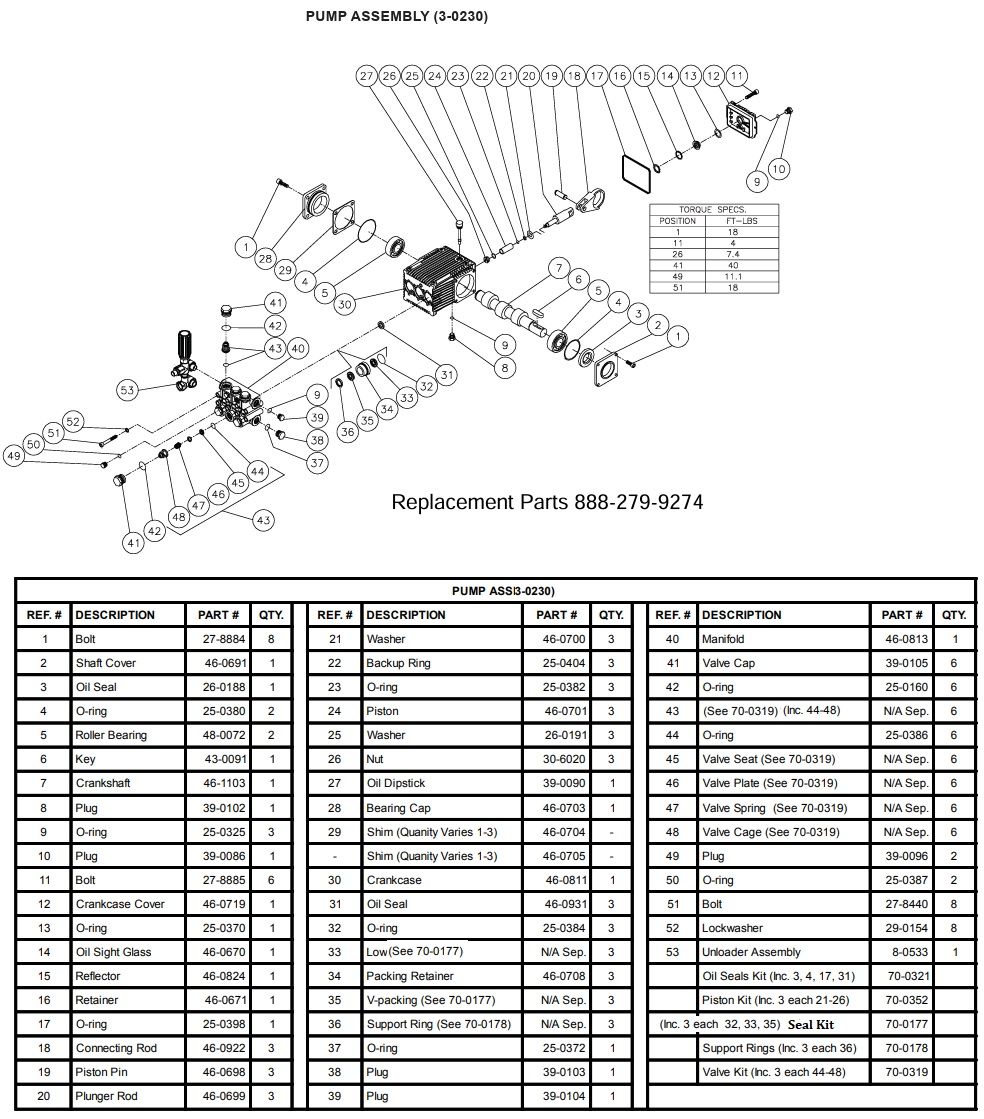

Mi-T-M 3-0230 Pump Parts

Replacement pump 3-0230Replacement pump 3-0230
 8-0533, OBSOLETE SEE 8-06318-0533, OBSOLETE SEE 8-0631
 AR pump oil, AR64516AR pump oil, AR64516
 KIT-VALVES 70-0319KIT-VALVES 70-0319
KIT - SUPPORT RING 18MM 70-0178KIT - SUPPORT RING 18MM 70-0178
 HIGH PRESSURE SEAL Kit 18MM 70-0177HIGH PRESSURE SEAL Kit 18MM 70-0177
 KIT-PISTON 18MM 70-0352KIT-PISTON 18MM 70-0352
 KIT-OIL SEALS 70-0321KIT-OIL SEALS 70-0321
Bolt 27-8884Bolt 27-8884
 SEAL - OIL 26-0188SEAL - OIL 26-0188
 O-RING 60 X 2.62MM 25-0380O-RING 60 X 2.62MM 25-0380
 NON DRIVEN TAP ROLLER BEARING 48-0072NON DRIVEN TAP ROLLER BEARING 48-0072
KEY - 8 X 7 X 40MM 43-0091KEY - 8 X 7 X 40MM 43-0091
 Mi-T-M PLUG BRASS 39-0102Mi-T-M PLUG BRASS 39-0102
 O-RING 25-0325O-RING 25-0325
 Bolt 27-8885Bolt 27-8885
COVER CRANKCASE 46-0719COVER CRANKCASE 46-0719
 O-RING 25-0370O-RING 25-0370
 OIL SIGHT GLASS 46-0670OIL SIGHT GLASS 46-0670
 REFLECTOR - OIL 46-0824REFLECTOR - OIL 46-0824
SPRING RETAINER-OIL SIGHT GLASS 46-0671SPRING RETAINER-OIL SIGHT GLASS 46-0671
 O-RING 25-0398O-RING 25-0398
 CONNECTING ROD - BRONZE 46-0922CONNECTING ROD - BRONZE 46-0922
 PISTON PIN 46-0698PISTON PIN 46-0698
PLUNGER ROD 46-0699PLUNGER ROD 46-0699
 SLINGER WASHER 46-0700SLINGER WASHER 46-0700
 BACKUP RING 25-0404BACKUP RING 25-0404
 O-RING 25-0382O-RING 25-0382
PISTON CERAMIC 46-0701PISTON CERAMIC 46-0701
 SEAL-WASHER/GASKET 26-0191SEAL-WASHER/GASKET 26-0191
 Nut 30-6020Nut 30-6020
 OIL DIPSTICK 39-0090OIL DIPSTICK 39-0090
BEARING CAP/SUPPORT 46-0703BEARING CAP/SUPPORT 46-0703
 SHIM .1MM 46-0704SHIM .1MM 46-0704
 SHIM .2MM 46-0705SHIM .2MM 46-0705
 CRANKCASE XR NEW STYLE 46-0811CRANKCASE XR NEW STYLE 46-0811
OIL SEAL 46-0931OIL SEAL 46-0931
 O-RING 25-0384O-RING 25-0384
 PACKING RETAINER 46-0708PACKING RETAINER 46-0708
 O-RING 25-0372O-RING 25-0372
PLUG - NICKEL 39-0103PLUG - NICKEL 39-0103
 39-0104, PLUG - NICKEL 3/8-19BSPP [Mi-T-M]39-0104, PLUG - NICKEL 3/8-19BSPP [Mi-T-M]
 CAP VALVE - STAINLESS STEEL 39-0104CAP VALVE - STAINLESS STEEL 39-0104
 O-RING 25-0160O-RING 25-0160
O-RING 25-0386O-RING 25-0386
 PLUG - BRASS 39-0096PLUG - BRASS 39-0096
 O-RING 25-0387O-RING 25-0387
 Bolt 27-8440Bolt 27-8440
Lockwasher 29-0154Lockwasher 29-0154
