Mi-T-M, 3-0173 Pump Rebuild Kits & Parts

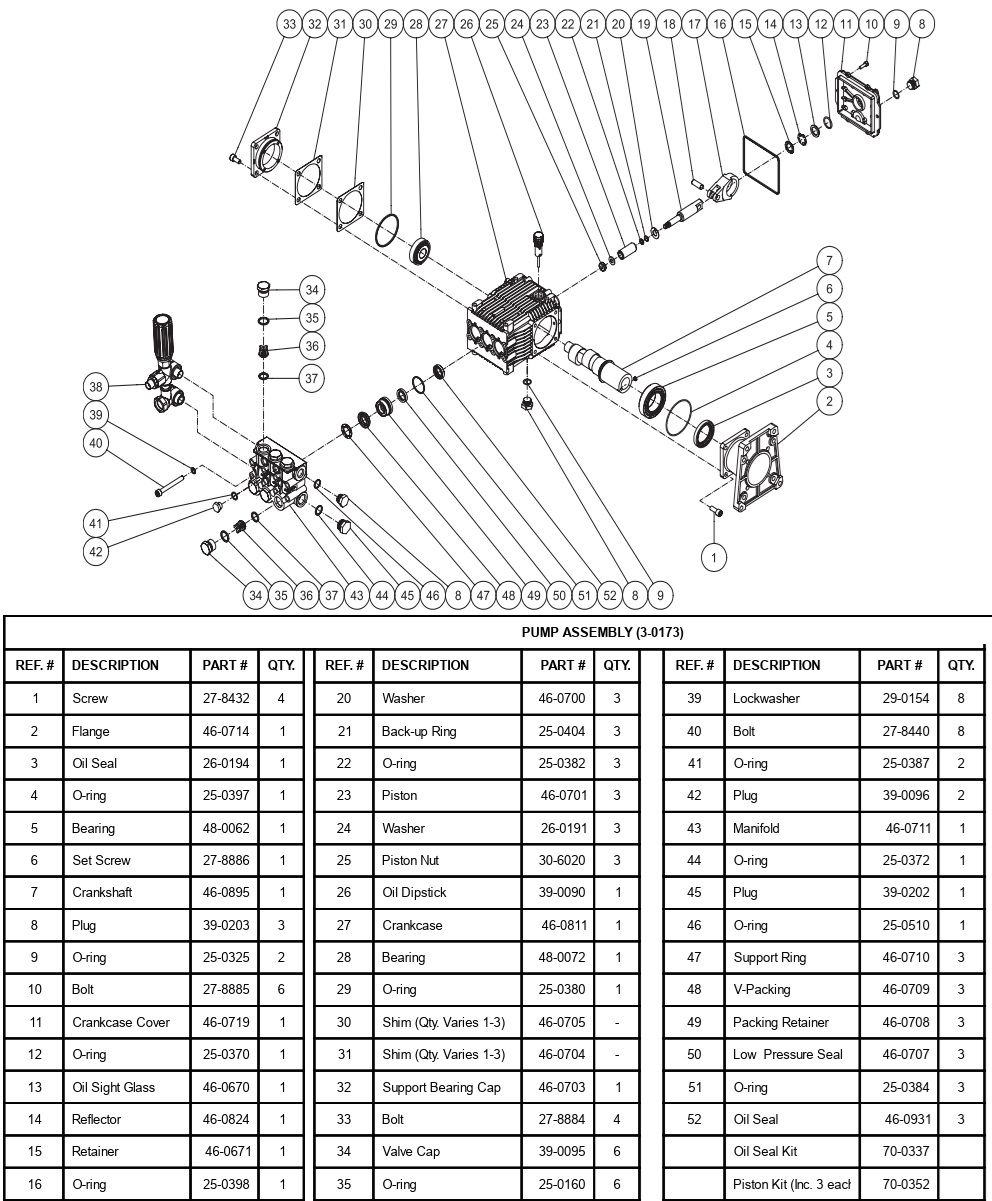

mitm 3-0173 pUMP BREAKDOWN

3-0173 PDF
Parts 888-279-9274

3-0173 Pump Parts

AR RKV4G37 PUMPAR RKV4G37 PUMP
 AR pump oil, AR64516AR pump oil, AR64516
 UNLOADER ASSY 8-0631UNLOADER ASSY 8-0631
 KIT-OIL SEAL 70-0337KIT-OIL SEAL 70-0337
KIT-PISTON 18MM 70-0352KIT-PISTON 18MM 70-0352
 HIGH PRESSURE SEAL Kit 18MM 70-0177HIGH PRESSURE SEAL Kit 18MM 70-0177
 KIT - SUPPORT RING 18MM 70-0178KIT - SUPPORT RING 18MM 70-0178
 KIT - VALVES 70-0179KIT - VALVES 70-0179
ZINC GR8.8 - 27-8432ZINC GR8.8 - 27-8432
 FLANGE FOR RKV PUMPS-TYPE F24 46-0714FLANGE FOR RKV PUMPS-TYPE F24 46-0714
 SEAL - OIL 26-0194SEAL - OIL 26-0194
 Mi-T-M, O-RING 25-0397Mi-T-M, O-RING 25-0397
BEARING TAPERED ROLLER 48-0062BEARING TAPERED ROLLER 48-0062
 Set Screw 27-8886Set Screw 27-8886
 PLUG-3/8" PLASTIC 39-0203PLUG-3/8" PLASTIC 39-0203
 O-RING 25-0325O-RING 25-0325
Bolt 27-8885Bolt 27-8885
 COVER CRANKCASE 46-0719COVER CRANKCASE 46-0719
 O-RING 25-0370O-RING 25-0370
 OIL SIGHT GLASS 46-0670OIL SIGHT GLASS 46-0670
REFLECTOR - OIL 46-0824REFLECTOR - OIL 46-0824
 RETAINER-OIL SIGHT GLASS 46-0671RETAINER-OIL SIGHT GLASS 46-0671
 O-RING 25-0398O-RING 25-0398
 CONNECTING ROD - BRONZE 46-0922CONNECTING ROD - BRONZE 46-0922
PISTON PIN 46-0698PISTON PIN 46-0698
 PLUNGER ROD 46-0699PLUNGER ROD 46-0699
 SLINGER WASHER 46-0700SLINGER WASHER 46-0700
 BACKUP RING 25-0404BACKUP RING 25-0404
O-RING 25-0382O-RING 25-0382
 PISTON CERAMIC 46-0701PISTON CERAMIC 46-0701
 SEAL-WASHER/GASKET 26-0191SEAL-WASHER/GASKET 26-0191
 Nut 30-6020Nut 30-6020
OIL DIPSTICK 39-0090OIL DIPSTICK 39-0090
 CRANKCASE XR NEW STYLE 46-0811CRANKCASE XR NEW STYLE 46-0811
 NON DRIVEN TAP ROLLER BEARING 48-0072NON DRIVEN TAP ROLLER BEARING 48-0072
 O-RING 60 X 2.62MM 25-0380O-RING 60 X 2.62MM 25-0380
SHIM .2MM 46-0705SHIM .2MM 46-0705
 SHIM .1MM 46-0704SHIM .1MM 46-0704
 BEARING CAP/SUPPORT 46-0703BEARING CAP/SUPPORT 46-0703
 Bolt 27-8884Bolt 27-8884
CAP VALVE BRASS 39-0095CAP VALVE BRASS 39-0095
 O-RING 25-0160O-RING 25-0160
 O-RING 25-0386O-RING 25-0386
 Lockwasher 29-0154Lockwasher 29-0154
Bolt 27-8440Bolt 27-8440
 O-RING 25-0387O-RING 25-0387
 PLUG - BRASS 39-0096PLUG - BRASS 39-0096
 MANIFOLD - BRASS 46-0711MANIFOLD - BRASS 46-0711
O-RING 25-0372O-RING 25-0372
 PLUG 39-0202PLUG 39-0202
 O-RING 25-0510O-RING 25-0510
 V-Packing 46-0709V-Packing 46-0709
SUPPORT RING 46-0710SUPPORT RING 46-0710
 PACKING RETAINER 46-0708PACKING RETAINER 46-0708
 PUMP - LOW PSI SEAL 46-0707PUMP - LOW PSI SEAL 46-0707
 O-RING 25-0384O-RING 25-0384
CRANKCASE COVER - REAR 46-0391CRANKCASE COVER - REAR 46-0391
 KIT-OIL SEAL 70-0337KIT-OIL SEAL 70-0337
 KIT-PISTON 18MM 70-0352KIT-PISTON 18MM 70-0352
 HIGH PRESSURE SEAL Kit 18MM 70-0177HIGH PRESSURE SEAL Kit 18MM 70-0177
KIT - VALVES 70-0179KIT - VALVES 70-0179
