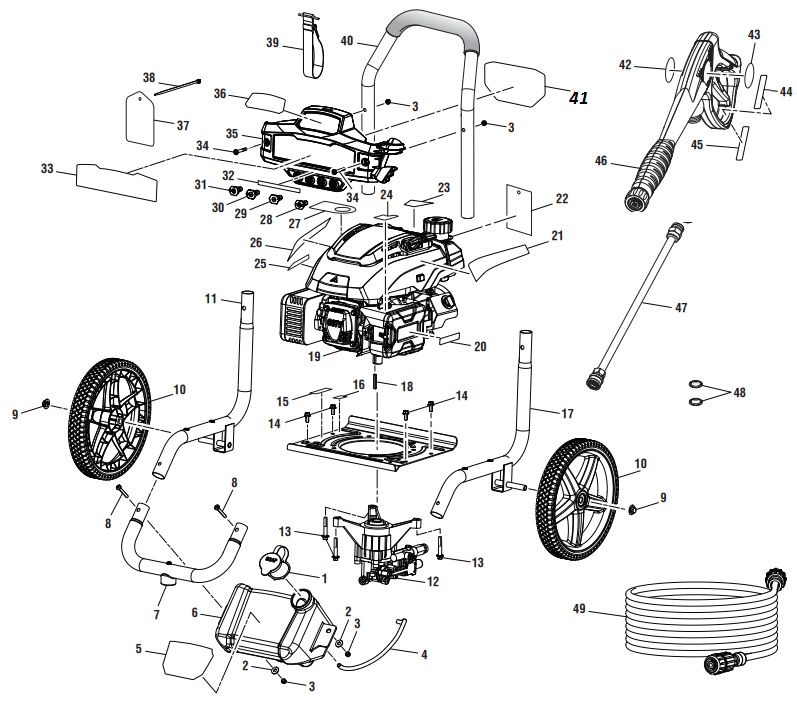

BM802823 PARTS BREAKDOWN

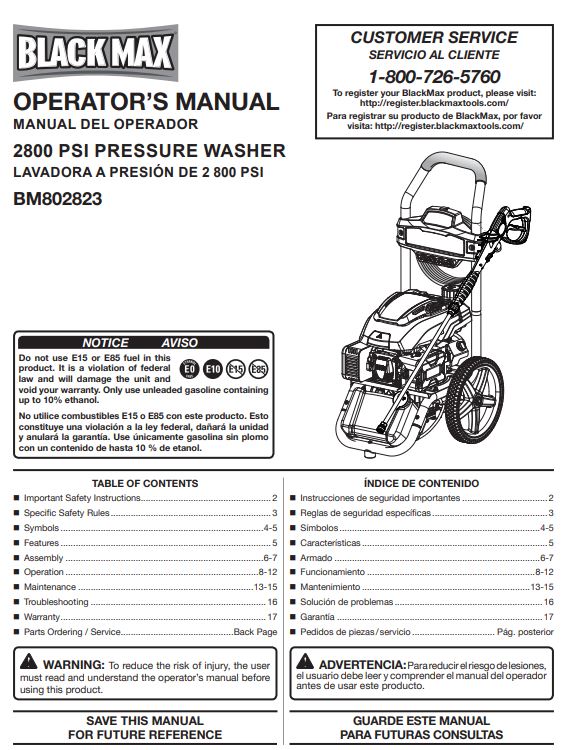

OWNERS MANUAL
| Kit | Gun, Hose, Wand, Tip kit |  |
View Part | |
| Kit | 5 spray tip kit |  |
View Part | |
| Kit | Turbo Nozzle |  |
View Part | |
| 1 | 310650004 | Soap Tank Cap |  |
View Part |
| 2 | 638128004 | Washer (1/4 in.). | Not available | |
| 3 | 678610006 | Lock Nut (M6) | Not available | |
| 4 | 570728009 | Chemical Siphon Tube |  |
View Part |
| 5 | 941851026 | Soap Tank Label | Not available | |
| 6 | 580875021 | Soap Tank |  |
View Part |
| 7 | 310742029 | Main Frame Assembly (Front). |  |
View Part |
| 8 | 661503015 | Bolt (M6 X 48 mm, T30 Torx Hd.) | Not available | |
| 9 | 679957001 | Cap Nut. |  |
View Part |
| 10 | 308451060 | Wheel. |  |
View Part |
| 11 | 310703024 | Main Frame Assembly (Left) |  |
View Part |
| 12 | 308653052 | Pump (See Figure B) |  |
View Part |
| 13 | 661505004 | Bolt (M8 x 45 mm, Flange Hd.) | Not available | |
| 14 | 661505020 | Bolt (M6 x 16 mm, Flange Hd.) | Not available | |
| 15 | 940947021 | Combustion Warning Label . | Not available | |
| 16 | 940871016 | Add Oil Label | Not available | |
| 17 | 310704029 | Main Frame Assembly (Right) |  |
View Part |
| 18 | 678041006 | Output Shaft Key |  |
View Part |
| 19 | Engine (Mitsubishi 173 cc) . | Not available | ||
| 20 | 941486009 | Inquiries Label. | Not available | |
| 21 | 941851014 | Left Wing Label | Not available | |
| 22 | 940971106 | Danger Hangtag | Not available | |
| 23 | 941851027 | E85 Label | Not available | |
| 24 | 940698039 | Choke Label. | Not available | |
| 25 | 941851028 | Hot Surface Label | Not available | |
| 26 | 941851013 | Right Wing Label | Not available | |
| 27 | 961454002 | Oil Dipstick Hangtag | Not available | |
| 28 | 308706015 | Soap Nozzle |  |
View Part |
| 29 | 308700030 | 40° Nozzle |  |
View Part |
| 30 | 308699029 | 25° Nozzle | View Part | |
| 31 | 308698029 | 15° Nozzle |  |
View Part |
| 32 | 940851342 | Nozzle Callout Label | Not available | |
| 33 | 941851029 | Performance Label (Mitsubishi) | Not available | |
| 34 | 661834004 | Bolt (M6 x 42 mm, T30 Torx Pan Hd.) | Not available | |
| 35 | 310673030 | Hose and Nozzle Holder Assembly |  |
View Part |
| 36 | 940705345 | Logo Label. | Not available | |
| 37 | 961039015 | Nozzle Hangtag | Not available | |
| 38 | 900333015 | Wire Tie | Not available | |
| 39 | 308350003 | Hose Holder Strap |  |
View Part |
| 40 | 308638072 | Handle Assembly |  |
View Part |
| 41 | 941851030 | Quick Start Label | Not available | |
| 42 | 940654084 | Trigger Handle Warning Label (English) | Not available | |
| 43 | 940726016 | Blackmax Spray Wand Logo Label | Not available | |
| 44 | 940654228 | Trigger Handle Warning Label (French/Spanish) | Not available | |
| 45 | 940786047 | Trigger Handle Rating Label | Not available | |
| 46 | 308760019 | Trigger Handle Assembly (Incl. Key Nos. 42 and 45) |  |
View Part |
| 47 | 308506014 | Spray Wand |  |
View Part |
| 48 | 120971005 | O-Ring Kit . |  |
View Part |
| 49 | 308835006 | Hose (25 ft.) |  |
View Part |
| Not Shown | Owners Manual |  |
View Part |
